RIBE Assembly Fixtures

Precision
in every step

Positioning, assembling, joining, bonding, pressing, testing – quality in every process

Our assembly fixtures are the foundation of efficient and process-stable production sequences, whether manual, semi-automatic or fully automatic. Mapping multiple component variants in a single machine is becoming ever more complex, especially under the premise of damage-free handling. We ensure ideal part location and reliable verification of the assembled components – to safeguard the quality of your products.

RIBE Assembly Fixtures

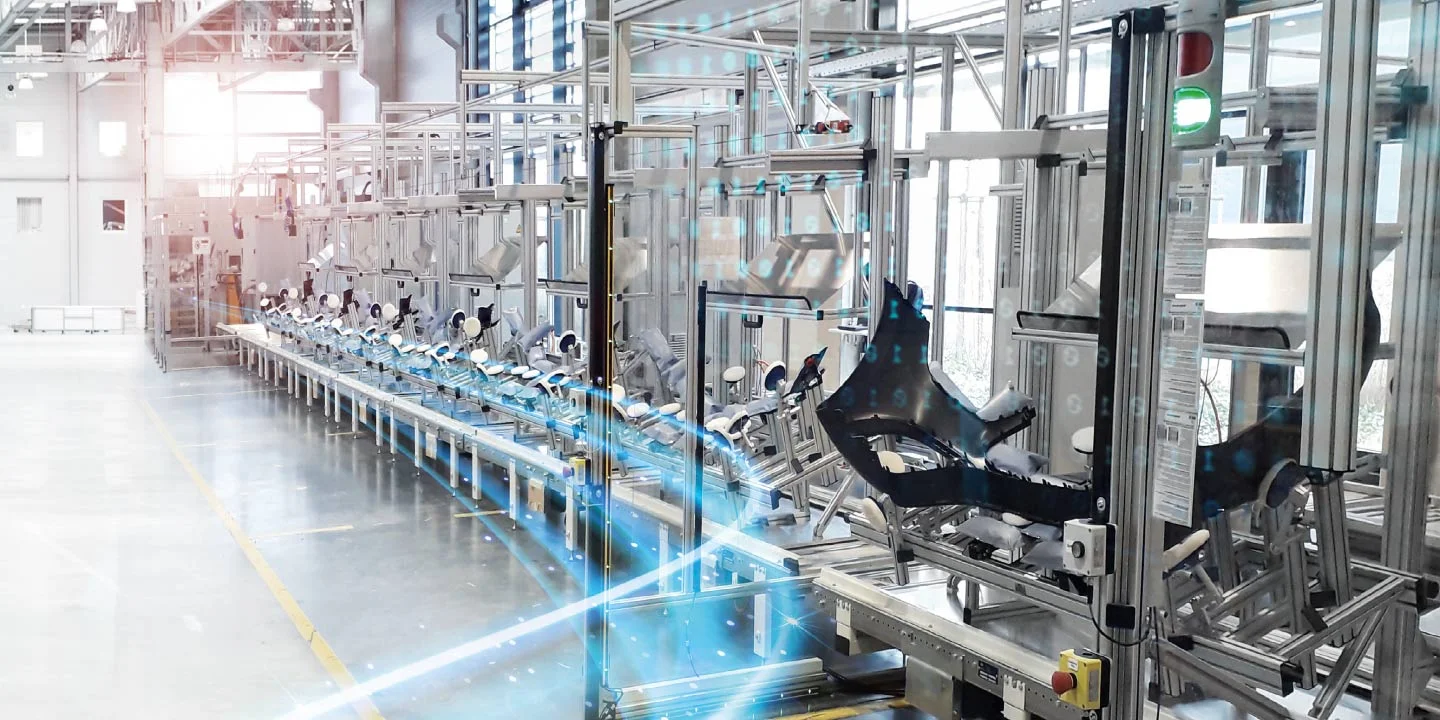

High-volume series / lines

Interlinked assembly lines

Conveyor systems in standard and special designs
adapted to component sizes and inline processes
Integration of assembly and functional testing
Robot for clip assembly, EOL test system, label application
Fully automated changeover concepts
Robot-side removal from the line and positioning
in e.g. hot riveting or punching systems
Seamless quality assurance
through sensors or camera systems

RIBE Assembly Fixtures

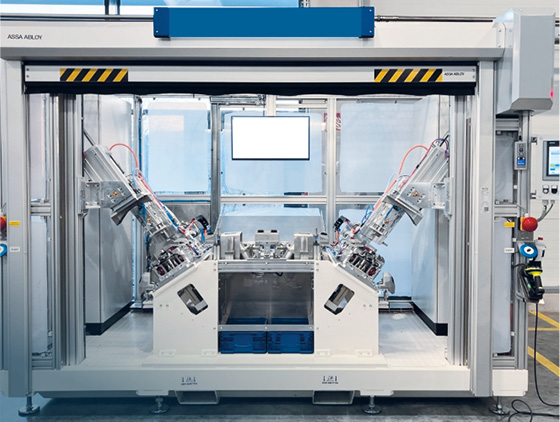

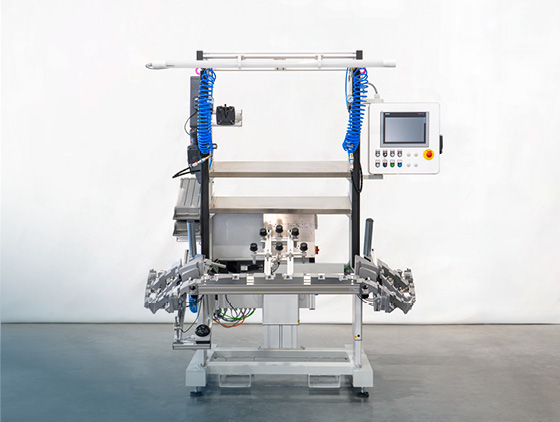

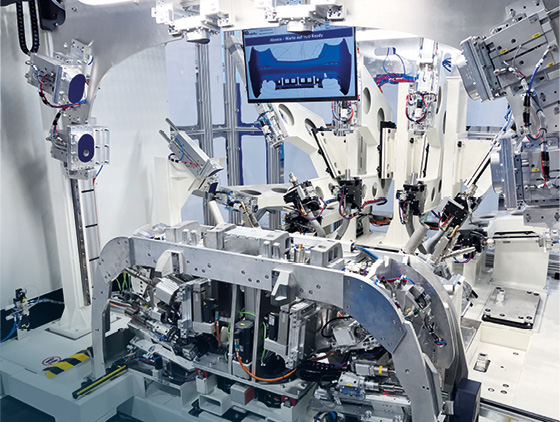

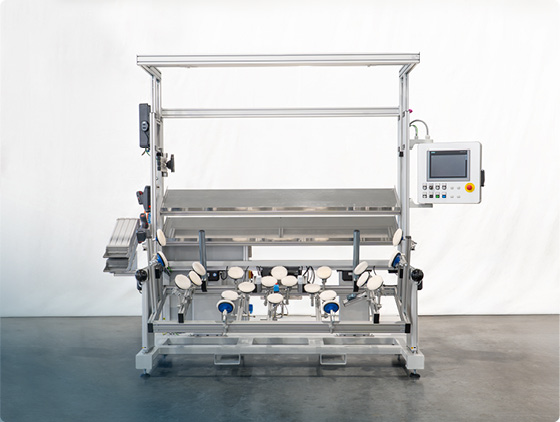

Series assembly

Specific concepts for series production

Ergonomic workstations,
designed and optimized for the assembly requirements
Operator guidance via HMI – image display and step-by-step
sequence guidance or integration of training sequences
Integration of peripherals
Screwdrivers, riveting tools, cordless hand tools with counting
Seamless quality control – component checks, color inspections,
contacting of hose systems and wiring harnesses

RIBE Assembly Fixtures

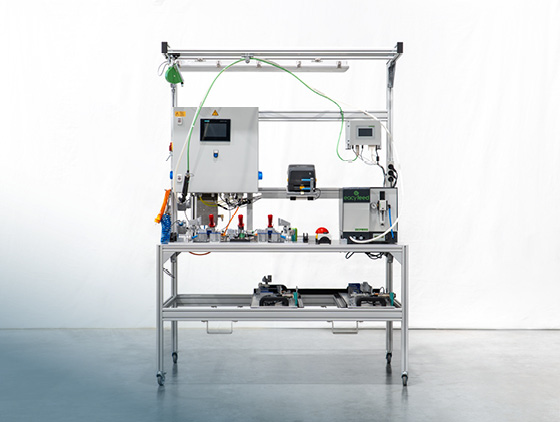

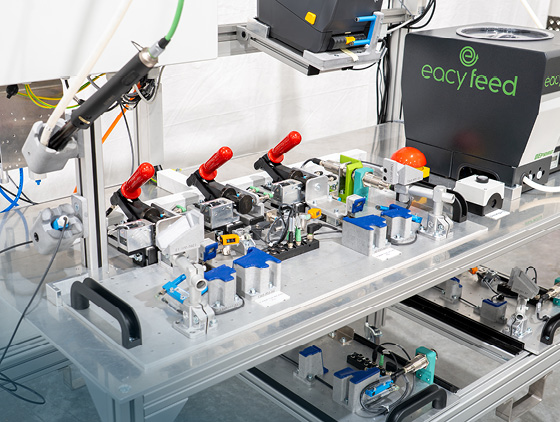

Small series to contingency concepts

Flexible concepts for low quantities

Interchangeable fixtures with automatic type recognition
without contact connectors, wireless signal transmission
Operator guidance via HMI
Image display and simple integration of fixtures
Integration of peripherals
Screwdrivers, riveting tools, cordless hand tools with counting
Seamless quality control
Traceability – integration of e.g. printers or report files
for seamless tracking

RIBE Assembly Fixtures

Punching, welding, bonding

Series concepts for semi-automatic processes

Punching-embossing
with embossed or thermoformed radii and contours
Vibration and torsional welding
Bonding – individually with hole detection or integrated into the punching tool
Multi-stage combined processing
ithout removal or component handling
Requirement-specific drives Selection of servo or pneumatic systems

RIBE Assembly Fixtures

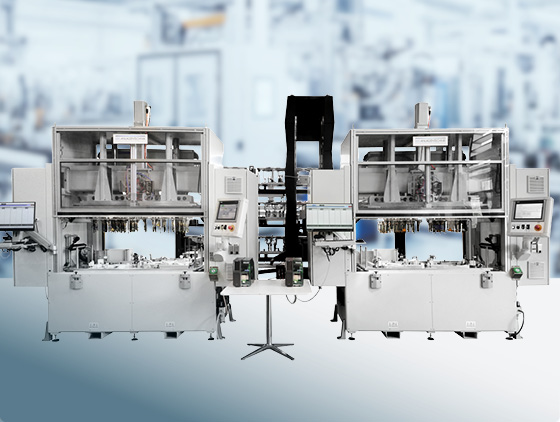

Hot riveting

Standard series concepts for semi-automatic processes

Individual systems or interlinked lines
for optimized integration into production concepts
Interchangeable tools for more flexibility and response time
Fully automatic changeover with axis handling or robot
Integrated EOL inspections
embedded light inspections in the welding chamber
Process parameters
Servo motors for optimal welding parameters
3D + rotation adjustable dome

Sustainability
in Assembly

Efficiency Meets Ergonomics

CONTACT

Our modular assembly systems are designed to achieve a perfect balance between automated and manual processes in order to optimize efficiency and ergonomics. Despite the underlying standardization, we tailor the system design individually to the needs of each customer. This customized approach ensures a smooth production process and guarantees that our customers receive exactly the technical equipment they need for their specific product. With our assembly solutions, you invest in cost-effectiveness and sustainability, optimize your production processes, and secure a decisive edge in manufacturing efficiency.
